RG-N18010-XH – Next Generation Data Center Network High-Density Centralized Modular Core Switch with 100GE/400GE Line Cards and Eight Service Slots Best Price In Dubai, UAE.
RG-N18010-XH – Next Generation Data Center Network High-Density Centralized Modular Core Switch with 100GE/400GE Line Cards and Eight Service Slots Best Price In Dubai, UAE.
RG-N18010-XH – Next Generation Data Center Network High-Density Centralized Modular Core Switch with 100GE/400GE Line Cards and Eight Service Slots Best Price In Dubai, UAE.
Ruijie

RG-N18010-XH – Next Generation Data Center Network High-Density Centralized Modular Core Switch with 100GE/400GE Line Cards and Eight Service Slots Best Price In Dubai, UAE.

   0 reviews
Product Code:
Availability:
RG-N18010-XH
In Stock

Highlight Features

  • 100GE and 400GE line cards, and up to 288 x 400GE and 1152 x 100GE line-rate ports
  • Communication at the maximum distance of 120 km and easy DCI
  • Hardware-level redundancy, ensuring nonstop services and data center network stability
  • MACsec data encryption and transmission, effectively protecting service data security
  • Innovative technology design and efficient heat dissipation, with more than 50,000 kWh saved per device each year
  • Telemetry-based network monitoring and automated O&M, making management simple and efficient
chat with Ruijiedubai.com
Description

Key Specification

Switching Capacity
153.6 Tbps
Packet Forwarding Rate
34,560 Mpps
Switch Fabric Module Slots
8
Module Slots
10 (2 for supervisor modules)
Dimensions (W × D × H)
Without cable management brackets: 442 mm x 961 mm x 534 mm (17.40 in. x 37.83 in. x 21.02 in., 12 RU) With cable management brackets: 442 mm x 1017 mm x 534 mm, (17.40 in. x 40.03 in. x 21.02 in., 12 RU)
Operating Temperature
0ºC to 40ºC (32ºF to 104ºF)
Operating Humidity
10%RH to 90% RH (non-condensing)

Data Center 400GE Modular Core Switch RG-N18010-XH

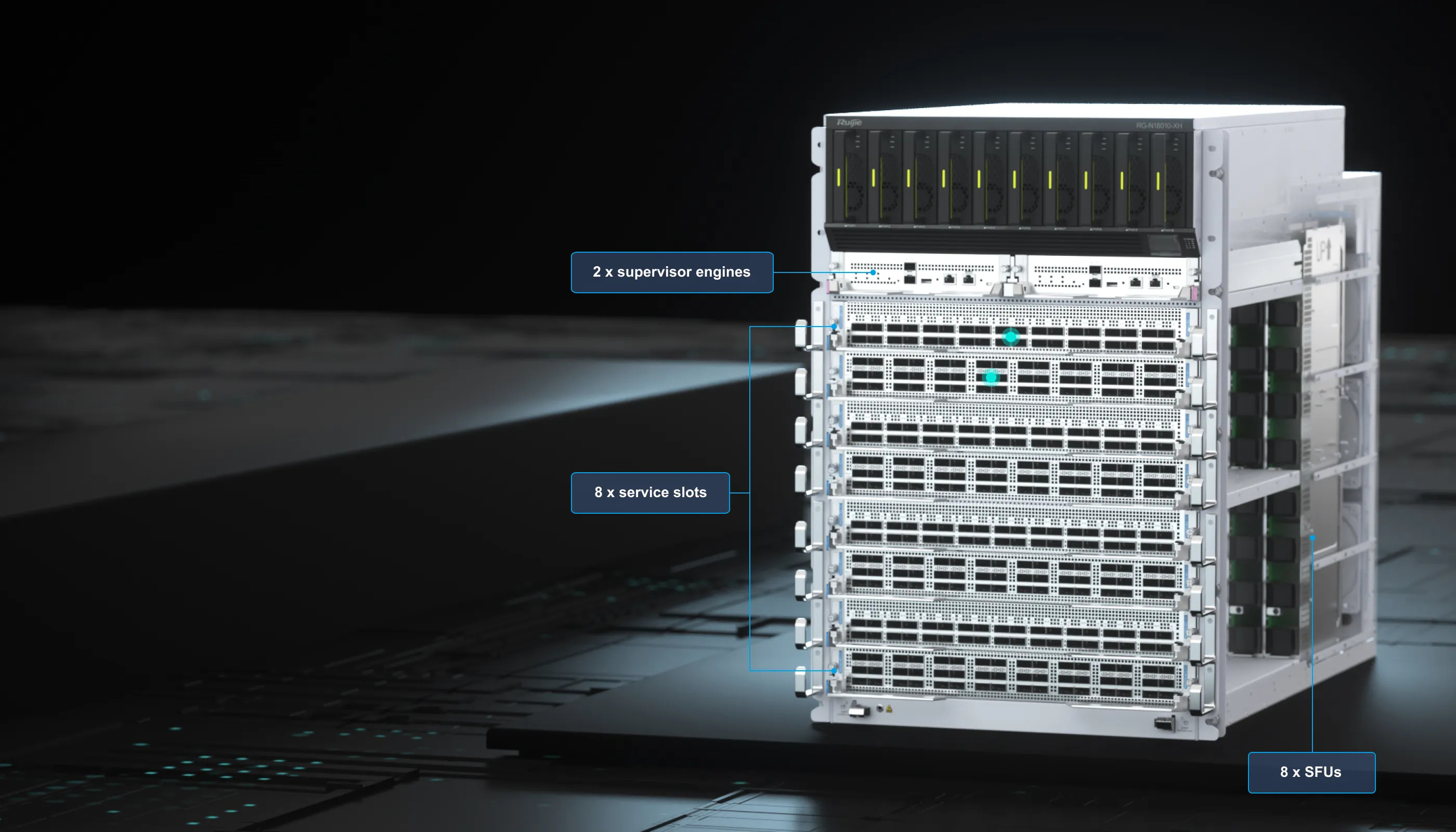

The RG-N18010-XH provides 10 module slots, including eight service slots, which can be used with 100GE and 400GE line cards. It supports 800GE line cards in the future, easily coping with future bandwidth expansion needs.

With various port types, the RG-N18010-XH supports up to 288 x 400GE and 1152 x 100GE line-rate ports, and allows smooth evolution to 800GE, satisfying requirements in diversified scenarios of data center networks.

Modular Core Switch RG-N18010-XH
Modular Core Switch RG-N18010-XH

MACsec Data Encryption and Transmission,Effectively Protecting Service Data Security

MACsec provides hardware-level data encryption. With MACsec and 802.1X configured, the switch can strictly identify and verify transmitted data. With MACsec, the switch achieves interface-based secure line-rate transmission, effectively preventing data from being intercepted and obtained maliciously and ensuring service data security.

Specifications

Hardware Specifications

System

RG-N18010-XH

Switching Capacity

230.4Tbps

Packet Forwarding Rate

43200 Mpps

Slots

RG-N18010-XH

Module Slots

10 (2 for supervisor modules)

Switch Fabric Module Slots

8

Fan module

Three fan module slots

Power module

Ten power module slots

Dimensions and Weight

RG-N18010-XH

Dimensions (W × D × H)

Without cable management brackets: 442 mm × 896 mm × 708 mm (17.40 in. x 35.28 in. x 27.87 in., 16 RU)

With cable management brackets: 442 mm × 935 mm × 708 mm (17.40 in. x 36.81 in. x 27.87 in., 16 RU)

Weight

96.4 kg (212.53 lbs., including the fan)

Power Supply and Consumption

RG-N18010-XH

Power Supply

RG-PAH3000I-F:

AC: 100 VAC to 176 VAC, power: 1500 W

AC: 176 VAC to 240 VAC, power: 3000 W

HVDC: 240 V DC to 380 V DC, power consumption: 3000 W

Ventilation type

Front-to-rear ventilation

Maximum Power Consumption

19000 W

Environment and Reliability

RG-N18010-XH

MTBF

> 692,000 hours

Operating Temperature

0ºC to 40ºC (32ºF to 104ºF)

Storage Temperature

–40ºC to +70ºC (–40ºF to +158ºF)

Operating Humidity

10%RH to 90% RH (non-condensing)

Storage humidity

5% to 95% RH (non-condensing)

Altitude

Operating altitude for long-term working conditions: up to 5000 m (16404.20 ft.). At 1800 m (5905.51 ft.), the maximum operating temperature is 40°C (104°F). The maximum operating temperature decreases by 1°C (1.8°F) per 200 m(656.16 ft.) increase in altitude.

Operating altitude: up to 5000 m (16404.20 ft.)

Storage altitude: up to 5000 m (16404.20 ft.)
